Audit Destinations
Audit Destinations
Four types of auditing information are available:
- Authentication: users presenting credentials to obtain an access token
- Authorisation: individual transactions with an access token that are checked for allow/deny
- Access logs: individual transaction detail information
- API access: changes to the state of the system via API
By default, all records except for those generated by an Agilicus Agent Connector are stored inside the Agilicus cloud. In addition, you may send logs to a webhook (or, in the case of the Agent Connector, a file).

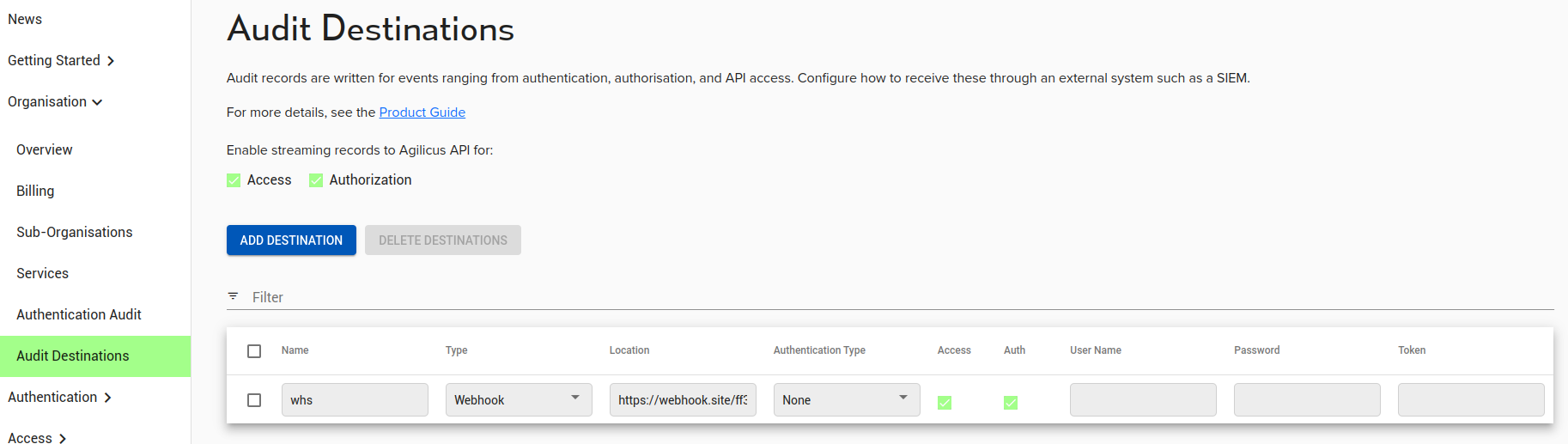

You may enable records from the Agent Connector to come back to the Agilicus Cloud by enabling ‘Access’ and ‘Authorisation’ check marks in the Audit Destinations screen.

For each webhook destination, optional authentication information may be passed.
The intent of the audit destinations to a webhook is to allow the use of an external SIEM or log collector. Messages are sent in JSON format, an example is shown below:
{
"events": [
{
"create_time": "2022-02-13T21:17:10.912073099Z",
"event": {
"authority": "share.dbt.agilicus.cloud",
"bytes_received": 0,
"bytes_sent": 0,
"downstream_remote_address": "99.250.30.222",
"duration": 16,
"flags": "",
"hostname": "ds120",
"http_referrer": "https://profile.dbt.agilicus.cloud/",
"http_user_agent": "Mozilla/5.0 (X11; Linux x86_64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/98.0.4758.74 Safari/537.36",
"jti": "",
"log_type": "access",
"method": "OPTIONS",
"org": "",
"path": "/tmp/",
"protocol": "HTTP/1.1",
"request_id": "ad74cbc1-572c-47f3-8346-6e8f0ccc6c6a",
"response_code": 200,
"source_id": "XcX49eHn99DaoADbqfut4c",
"source_org_id": "5kX8JJdQ3CzYXXXXXX",
"source_type": "agent-connector",
"start_time": "2022-02-13T21:17:09.757266487Z",
"sub": "",
"upstream_authority": "127.0.0.1:45819"
},
"unique_id": "cCwsSeh8gwH66rVLMzayEi"
},
{
"create_time": "2022-02-13T21:17:10.912278621Z",
"event": {
"allowed": true,
"authenticated": true,
"authority": "share.dbt.agilicus.cloud",
"downstream_remote_address": "99.250.30.222",
"error": false,
"hostname": "ds120",
"jti": "hTrNWKetLyWLuS5rGA5B2s",
"log_type": "authorization",
"method": "PROPFIND",
"org": "5kX8JJdQ3CzYXXXXXX",
"path": "/tmp/",
"protocol": "HTTP/1.1",
"request_id": "c7e93aa2-bef1-4b96-9e0d-b94775f39f1d",
"source_id": "XcX49eHn99DaoADbqfut4c",
"source_org_id": "5kX8JJdQ3CzYXXXXXX",
"source_type": "agent-connector",
"sub": "XGMKWs5Sqh3wXXXXXX",
"time": "2022-02-13T21:17:10.151794113Z",
"whitelisted": false
},
"unique_id": "qrb8Cidj56AZr6MtLChwun"
}
]
}
