UDP via SSTP VPN

When only a subnet will do

This example demonstrates using the SNI-expose feature to allow direct access to a VPN, skipping authentication and authorisation.

It is suitable for cases where a VPN is required (e.g. UDP adjacency) to a system that is behind a restrictive firewall, satellite, cellular, NAT.

UDP via SSTP VPN

Overview: UDP via SSTP VPN

In this example I show a method of running a traditional VPN on top of Agilicus AnyX. Its important to note that this dramatically reduces the security: there is no Zero Trust, there is no single-sign-on with multi-factor, there is no fine-grained authorisation and audit: its simply a tunnel. Be very careful in setting up these instructions, you are relying solely on the strength of the VPN passwords, on the strength of the VPN encryption, on the security of the software implementing the VPN, achieving UDP via SSTP VPN.

UDP via SSTP VPN

In this example, I am going to use Microsoft SSTP (which is PPP over HTTPS over TLS) in conjunction with the Agilicus AnyX SNI exposed host. This will allow you to emulate an HTTPS inbound connection, even if you have outbound only connectivity. Similar to other systems that use Dynamic DNS and Port Forwarding, you will get a single, stable hostname which is always available on port 443, which is directly attached to your SSTP server.

In this example write up I will use SoftEther VPN. We provide some example configurations for it, but ultimately you can configure it however you wish and responsible for ensuring its setup correctly for your environment. The SoftEther SSTP VPN allows both bridged and routed (NAT) environments, you may use the bridged environment if there is a DHCP server on the same subnet, in which case the client will appear as local.

Agilicus AnyX Setup

The first step is to install a connector on the site which will have port-443 access to your VPN server. I recommend running this on the same server as the SoftEther.

You will install the connector in the standard fashion (see installation instructions) for your platform. This connector can be shared with other purposes, it need not be dedicated.

The second step is to create a ‘network’ and, expose it via hostname. In the below example, I have created a connector called ‘sstp’. I have created a network called ‘vpn’. The upstream hostname/port is the hostname/port of the on-premise SSTP server. Since I have installed it on the same host, I have used localhost, port 443.

In addition, I have set the service to be TLS (since the SoftEther server, SSTP, is TLS), and, I have marked ‘Expose as Hostname’. The Expose as Hostname causes the Server Name Indication (SNI) to be directly Internet routable by name. This is logically equivalent to a dynamic DNS + port-forward solution.

The external hostname will be <service-name>.networks.<yourdomain>. So, for example, if you sign in to https://admin.myco.anyx.cloud, and your create the service name as ‘vpn’, the external name will be vpn.networks.myco.anyx.cloud. You may test it by opening in your browser as https://vpn.networks.myco.anyx.cloud. This will give a simple web page or an empty web page.

UDP via SSTP VPN

SoftEther VPN Server Setup: Windows

You have signficant latitude in how to configure SoftEther on your windows machine (the server side, where the connector runs). Here I show a single opinionated install, feel free to make you own choices.

Download SoftEther(1)

Navigate to the softether web site (softether.org) and find the current version for your platform to download.

Here we are using the SoftEther VPN Server, and the Windows Platform.

7566dd9f image

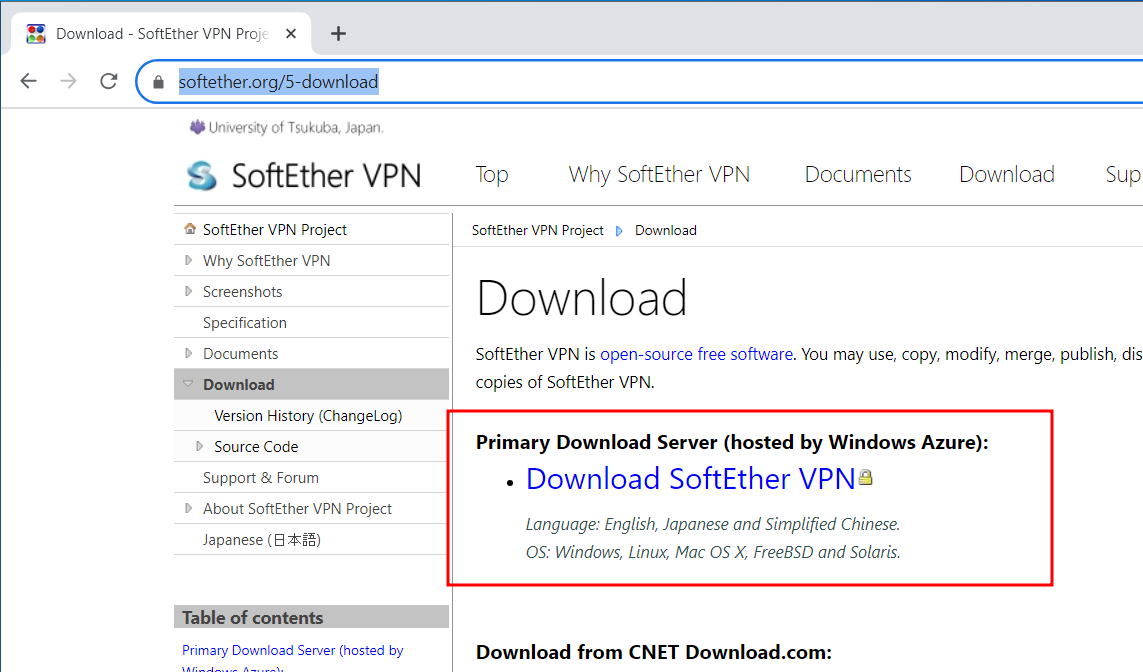

Download SoftEther(2)

Download the software.

46fe18da image

Select Components

We need only install the SoftEther VPN Server.

SSTP clients are built in to Windows by default, so later when we connect from outside this network, we can use the standard platform software.

1c812d17 image

Set the Admin Password

This password is very important. It is used to control who can modify the setup of the VPN server. I do not recommend making it the same as the user you will sign in as. Make this password strong, store it in your password manager.

cc3e48c5 image

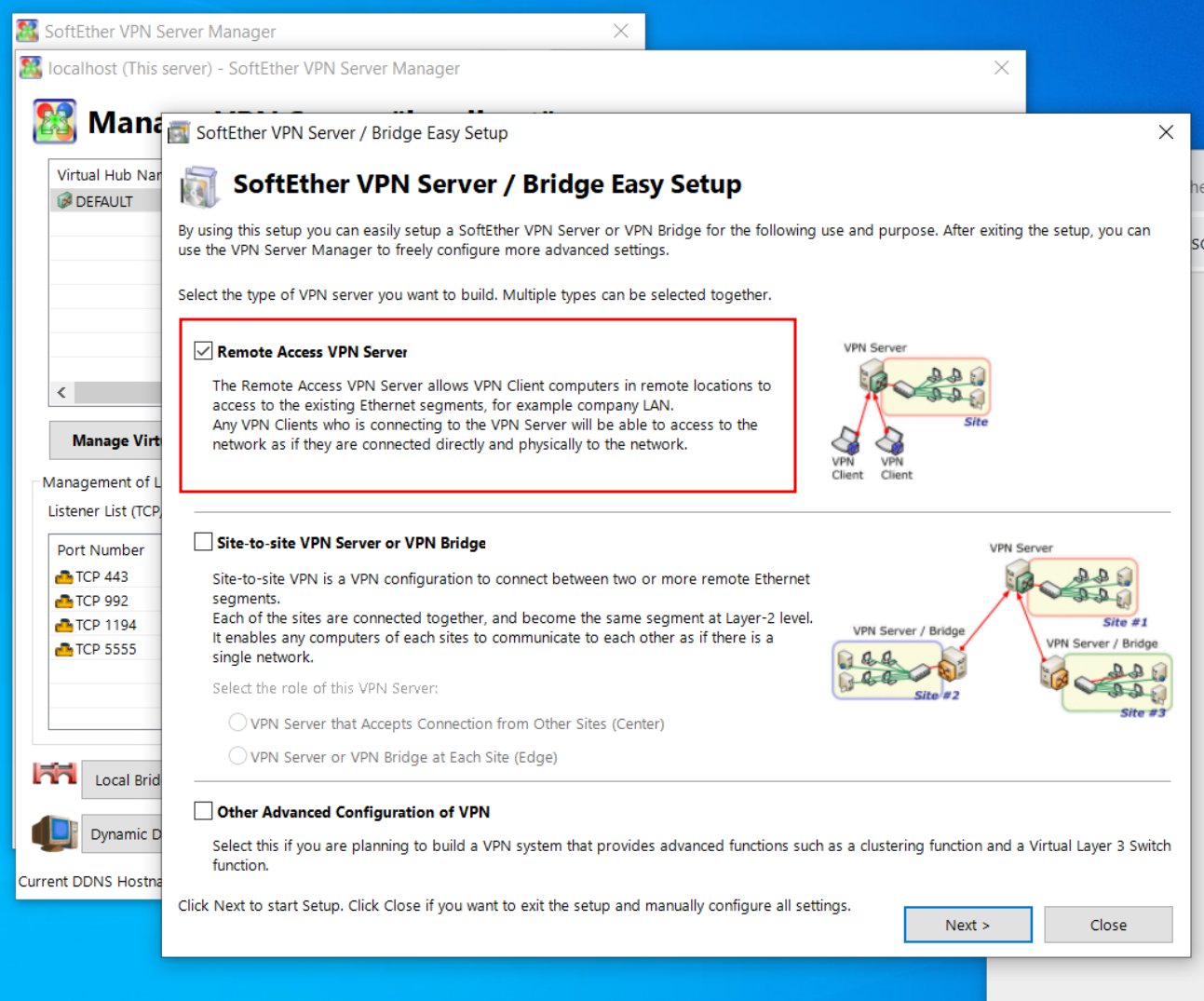

Configure VPN for Remote

You can consider which of these options is most appropriate for your environment.

In this example, we are assuming 1 nomadic user is connecting to 1 fixed site.

2d8e4ef5 image

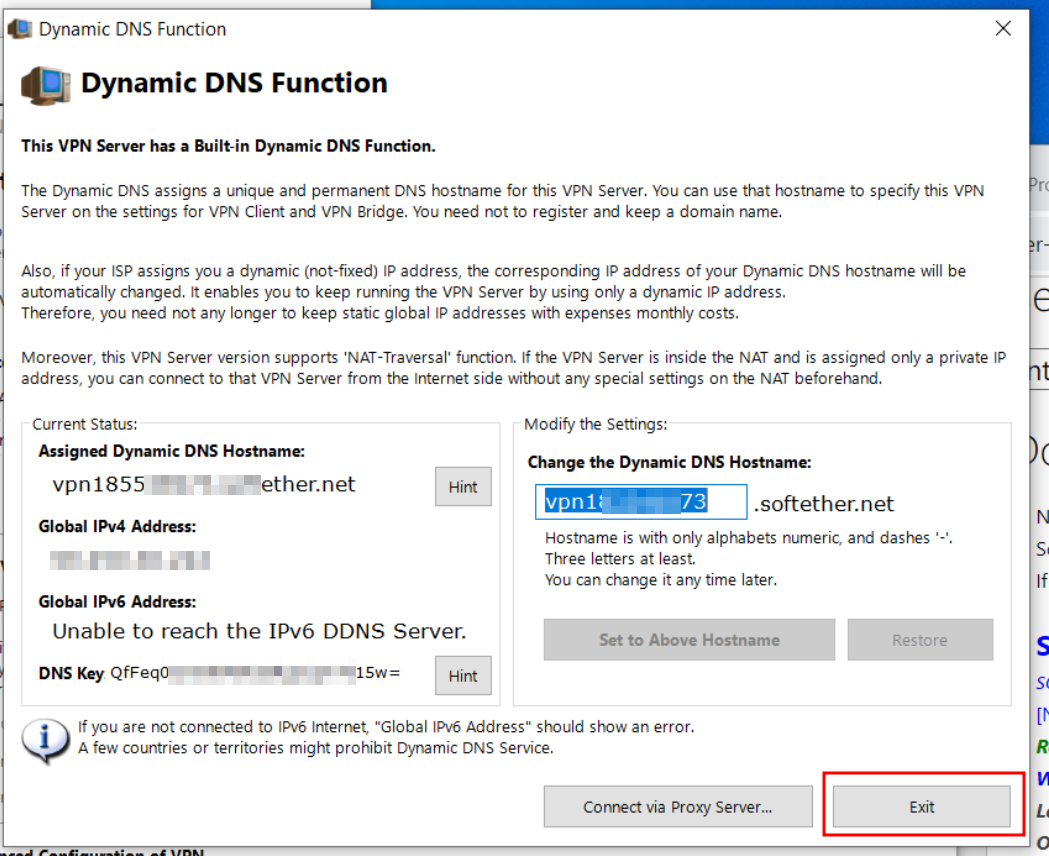

Disable Dynamic DNS

SoftEther comes with its own dynamic hostnames. You do not need this.

2ea7f67f image

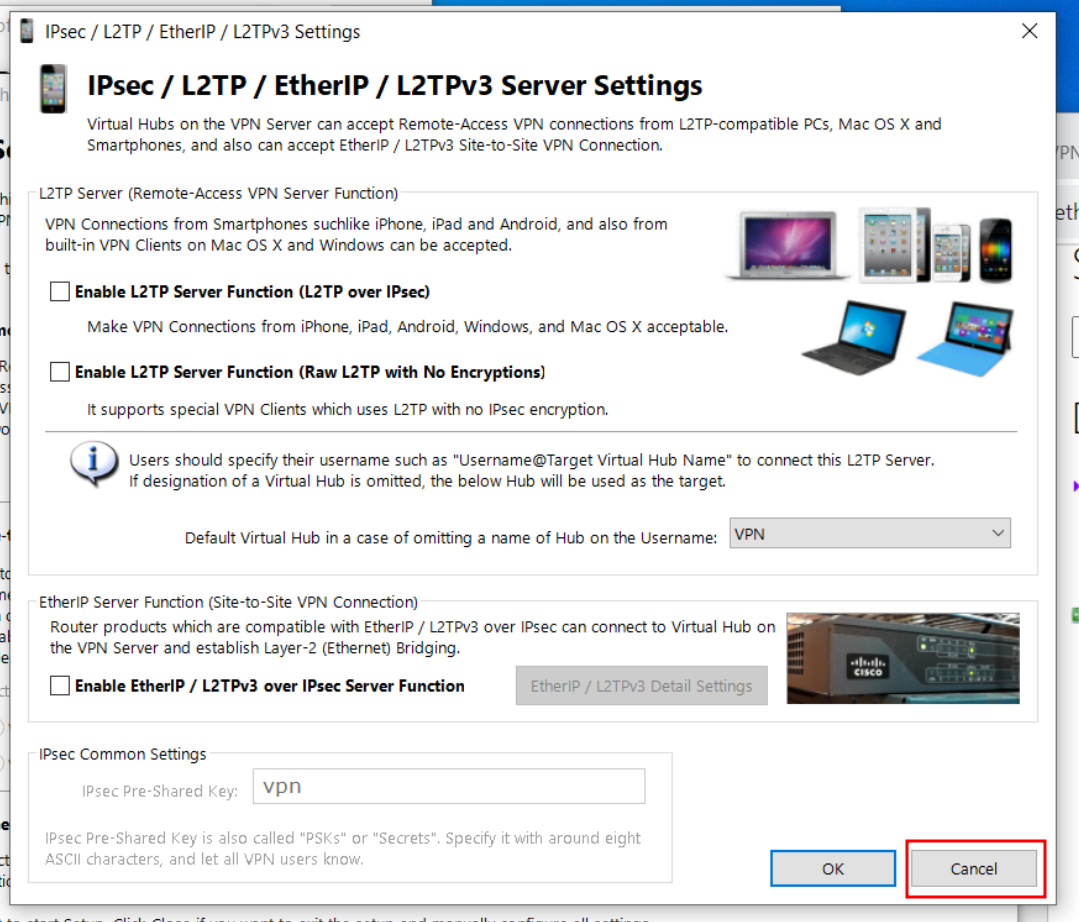

Disable IPSEC/L2TP/EtherIP

The only feature we want enabled is SSTP.

66d4a2a3 image

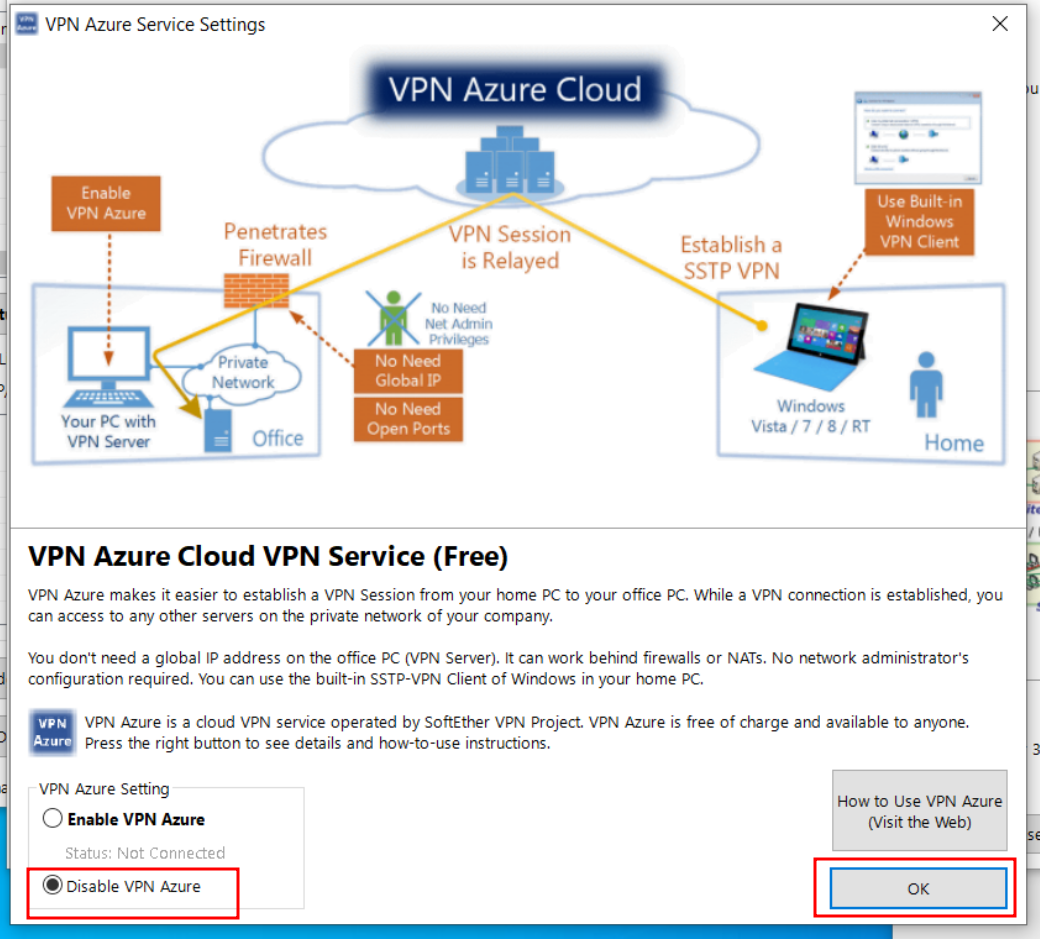

Disable Azure Cloud VPN

The only feature we want enabled is SSTP.

ee25ae4b image

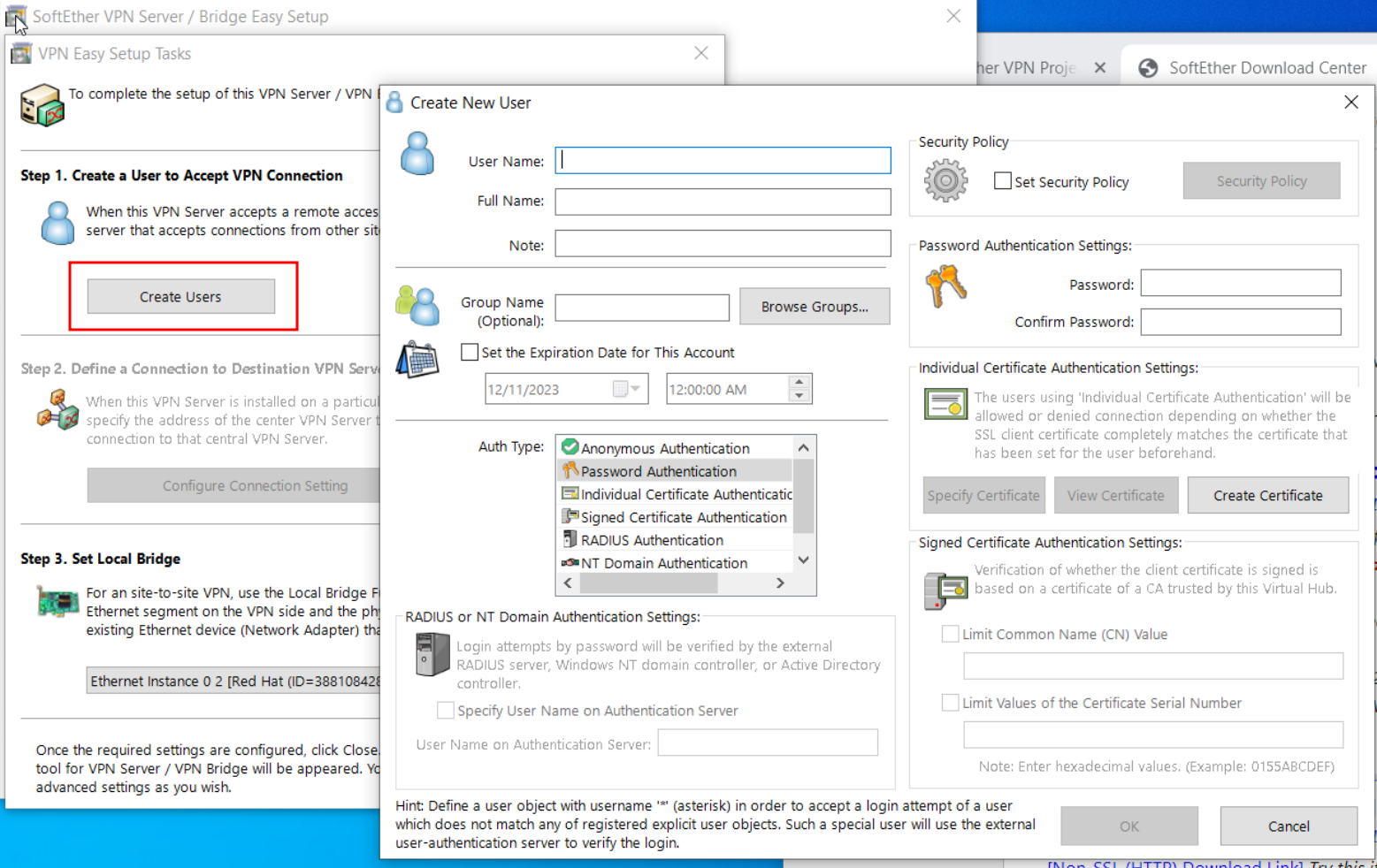

Create a User

Create the User you will use for access purposes. This is not the same as the administrator above.

You may select various methods to authenticate, here we are showing Password.

b7bd59ff image

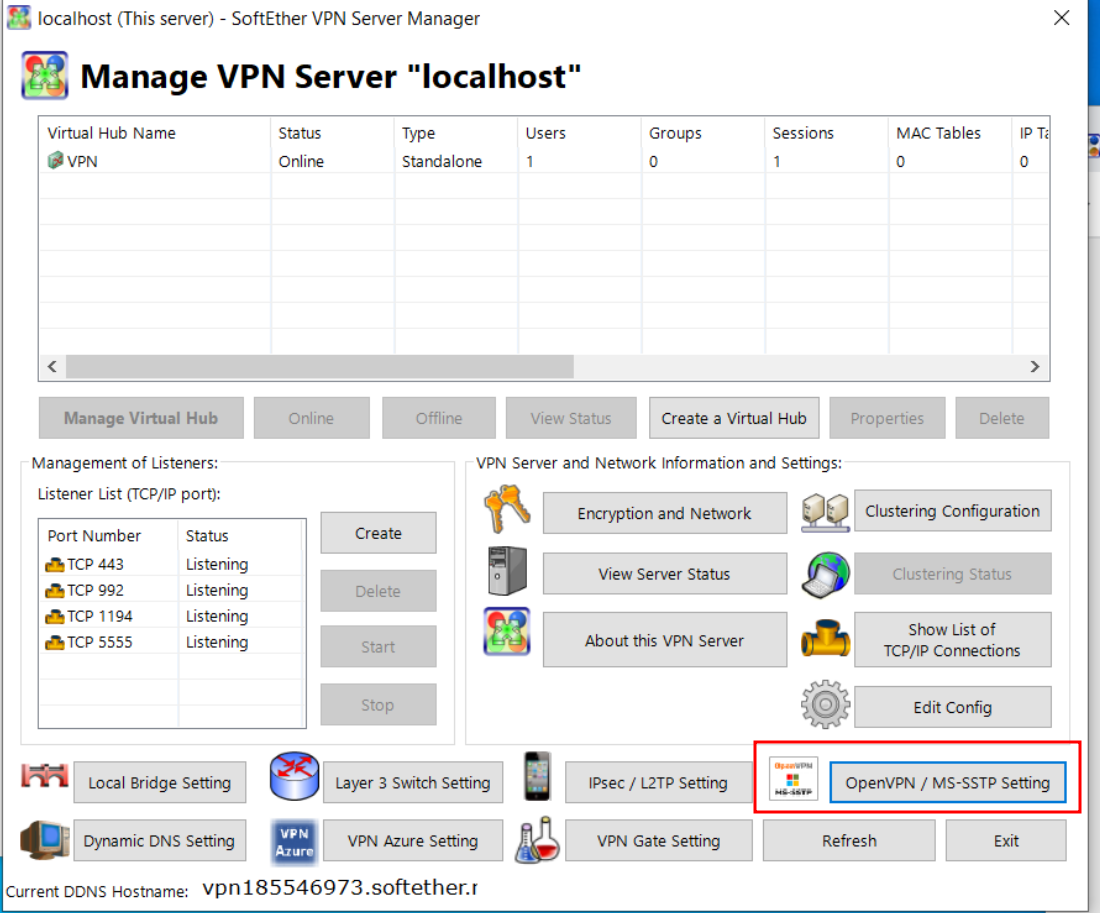

Enable MS-SSTP

Next we will enable and configure MS-SSTP

2fdc0d54 image

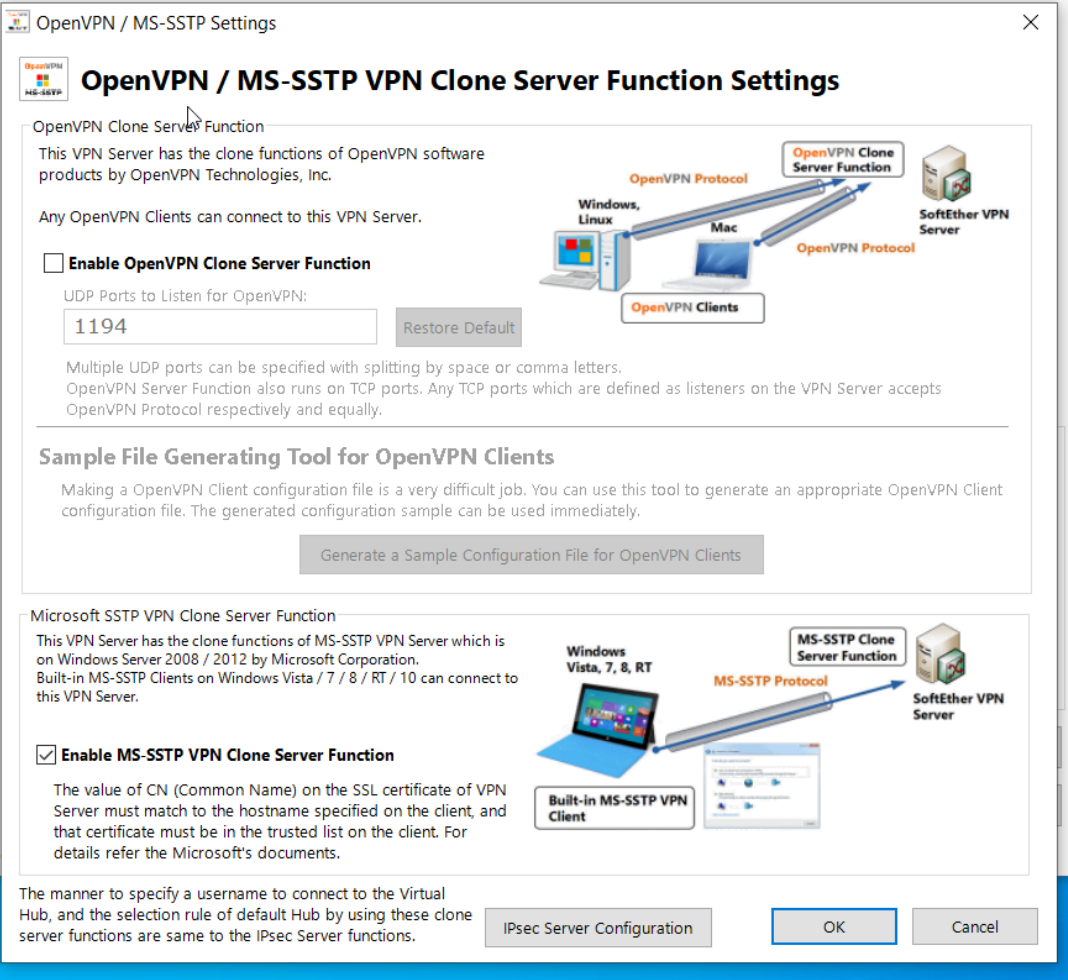

Enable MS-SSTP

Disable OpenVPN. Enable MS-SSTP

c5e8c5f7 image

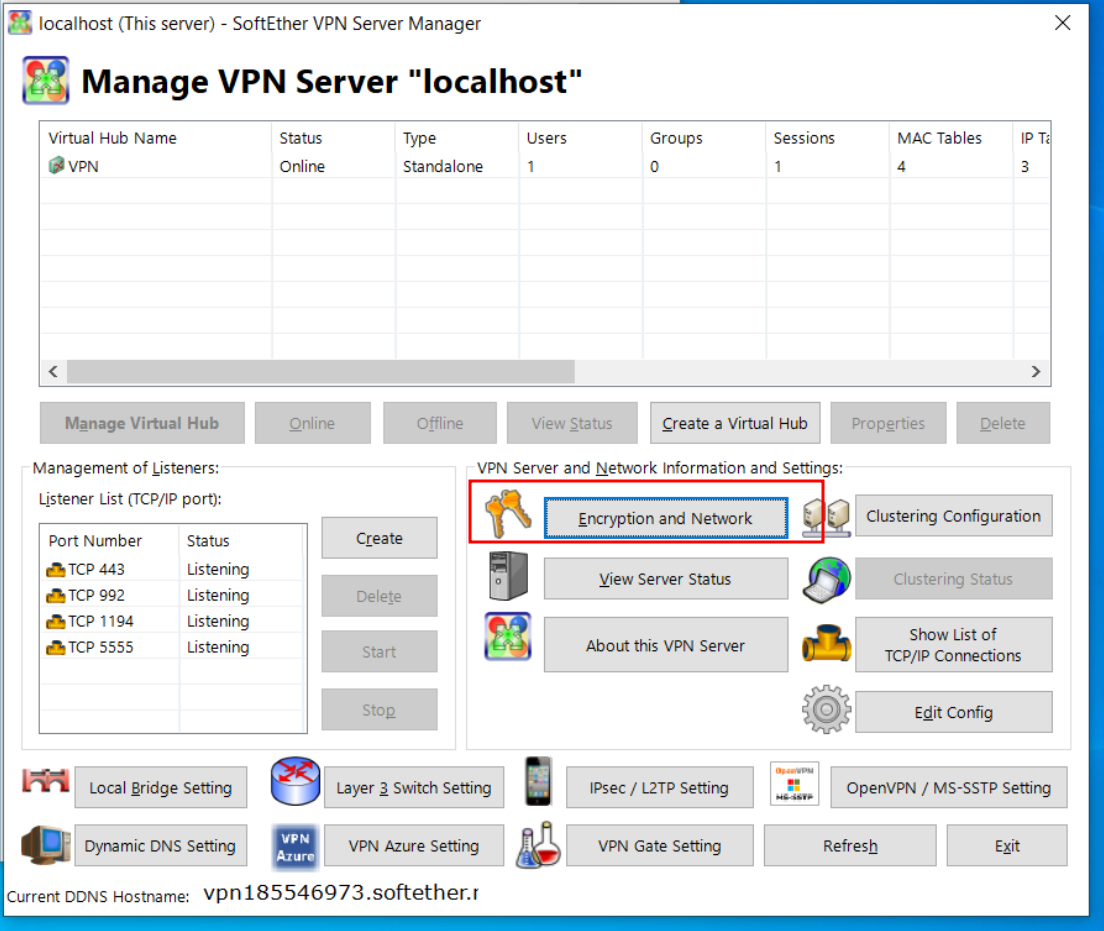

Setup Hostname Certificate

We will now configure the SSTP Certificate to match the name we created above in the Network.

318ca828 image

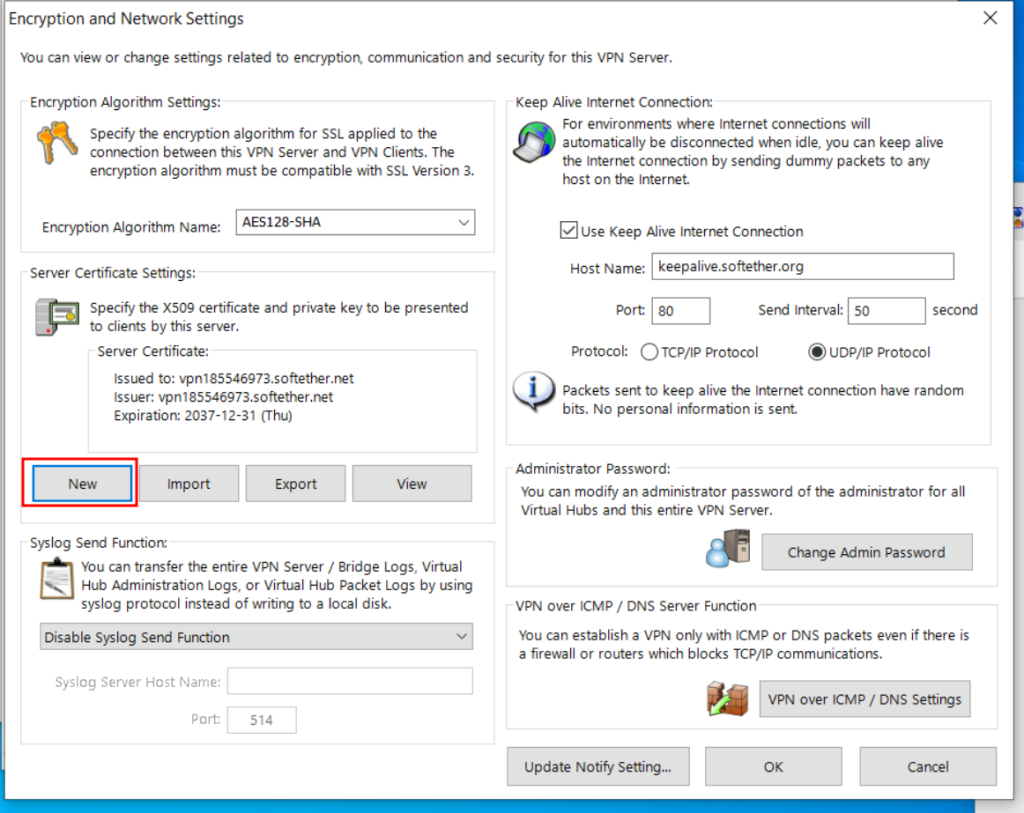

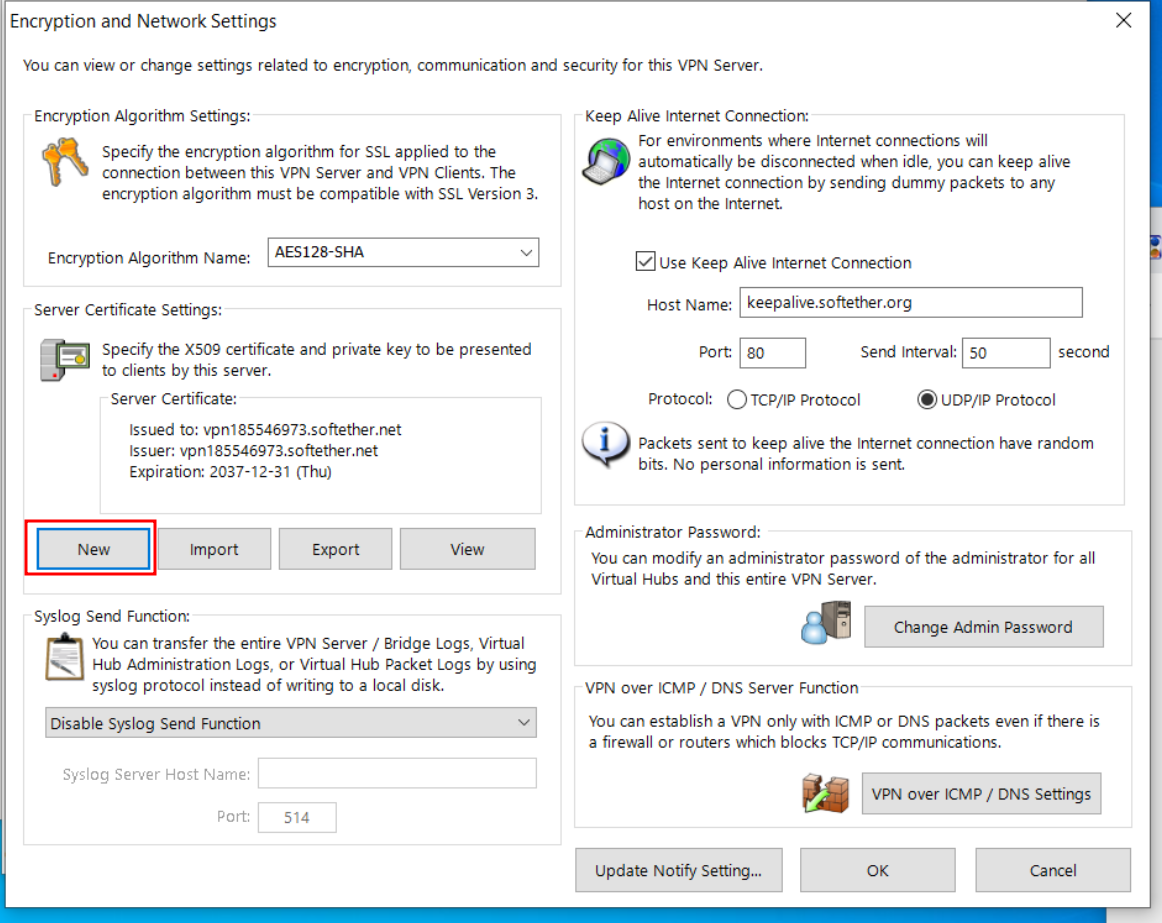

Set Encryption and Keepalive

Disable the ‘Use Keep Alive Internet Connection’

Set ‘AES256-SHA256’ to use stronger encryption.

Select ‘New’ to create a new certificate, matching the CN (common name) of the Network we created above.

ff3bb3ca image

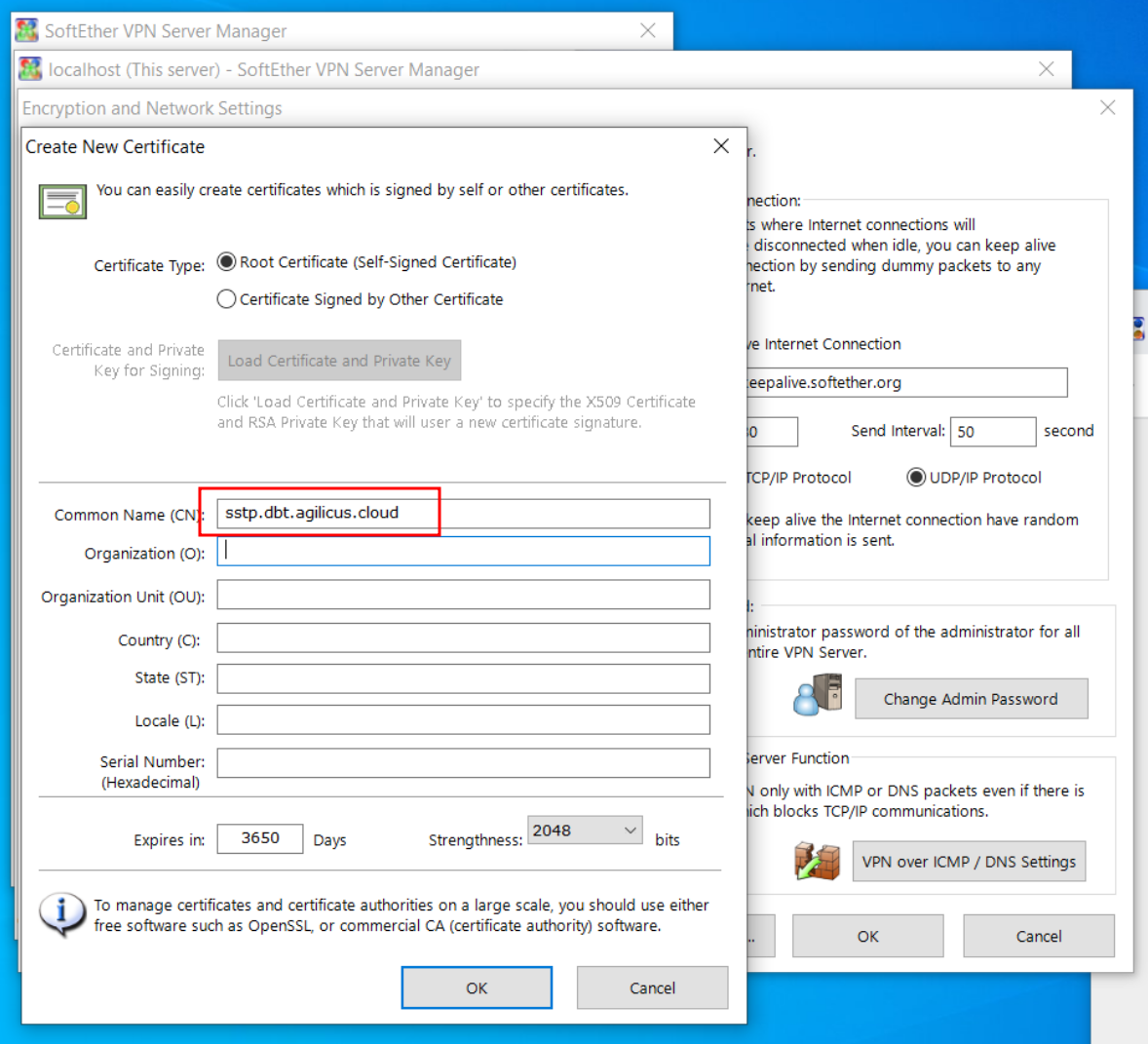

Set Certificate Name

In the Common Name (CN) field, enter the name of the Network you created above.

This name will be in the format <network-name>.networks.<mydomain>.

You only need to configure the first row, then press OK.

df7f7deb image

At this stage, examine the other settings. The interface you are bridged to, whether you should use SecureNAT and DHCP.

Client Setup and Test

Android Client

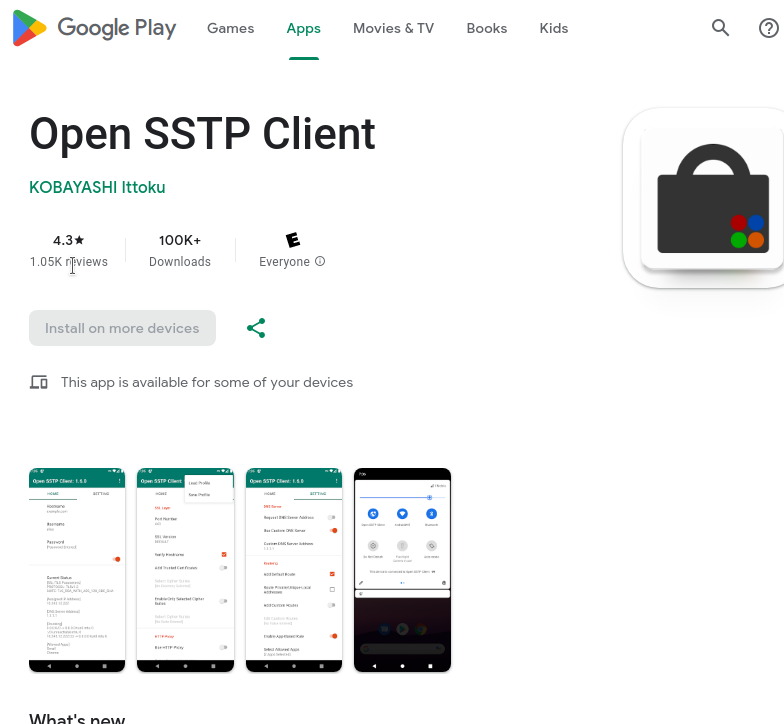

Multiple clients are available for Android. I have tested with Open SSTP Client.

https://play.google.com/store/apps/details?id=kittoku.osc&hl=en_CA&gl=US

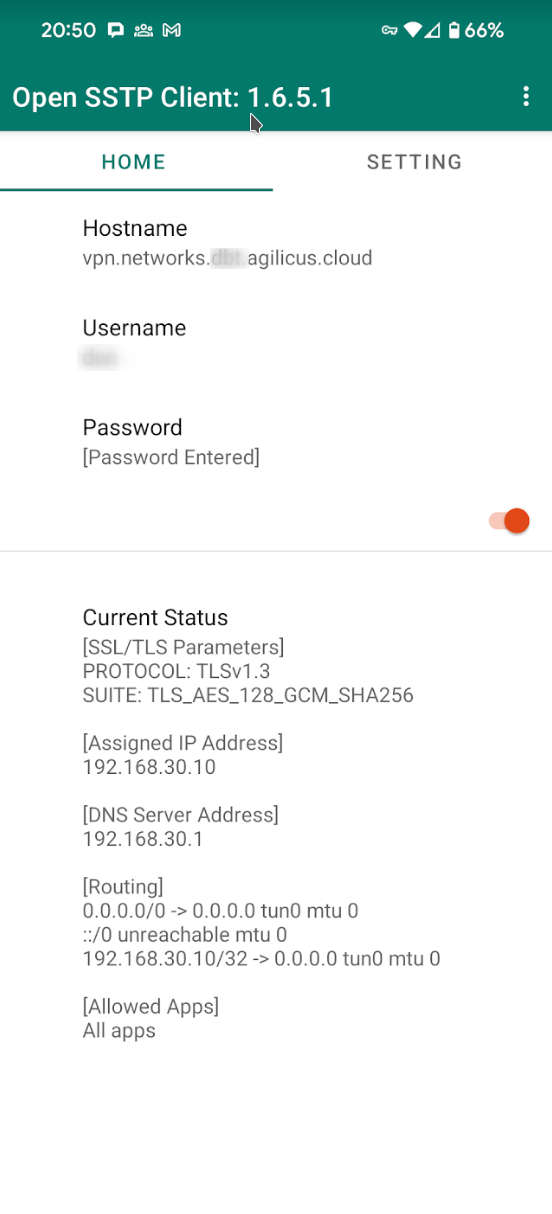

The setup of this client is very simple:

  1. Hostname (as above in Network name)
  2. Username (as above in User created)
  3. Password (as above in User created)

at this stage, you can press the enable button, and it should stay enabled.

f5dd1ddf image
952984af image

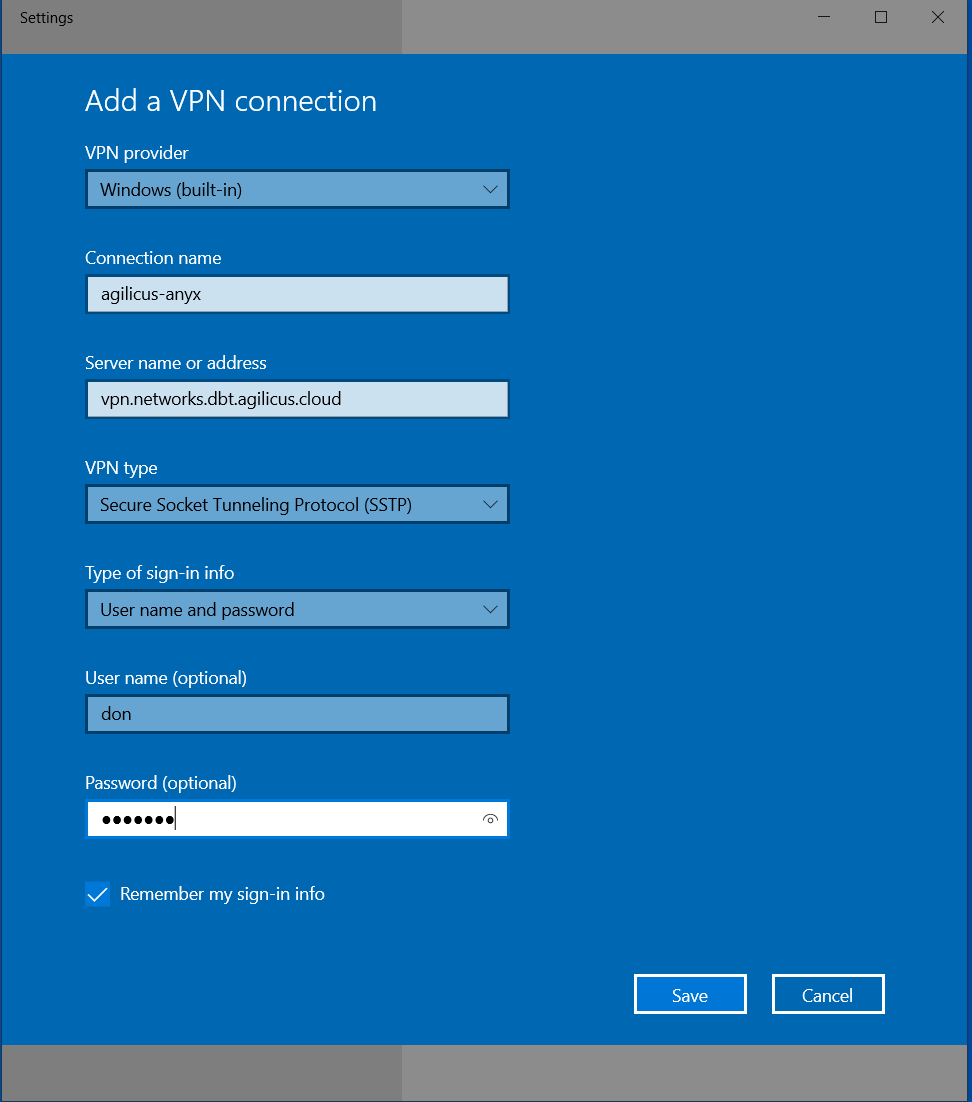

Windows Client

For Windows, we will use the built-in Microsoft VPN provider.

On the start menu, type ‘vpn’, then select ‘Add a VPN connection’.

From here, use the Windows (built-in) VPN provider, use the server name as above in the Network setup, and the User/Password you set.

Once done, connect to the VPN, and you may use standard Windows network diagnostics to check.
